SC-1700F2

Mode:: Type
Full-auto hot laminator; Side
Double side; Colors
Double Four Color; Number of Nozzles
(180 Nozzles×8 Lines) 1/2 Head as optional; Printing Materials
Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag; RIP software
Maintop5.3/Photoprint10.5/Onyx; Operating system
WindowXP,Win7/8

We're here to help: Easy ways to get the answers you need.

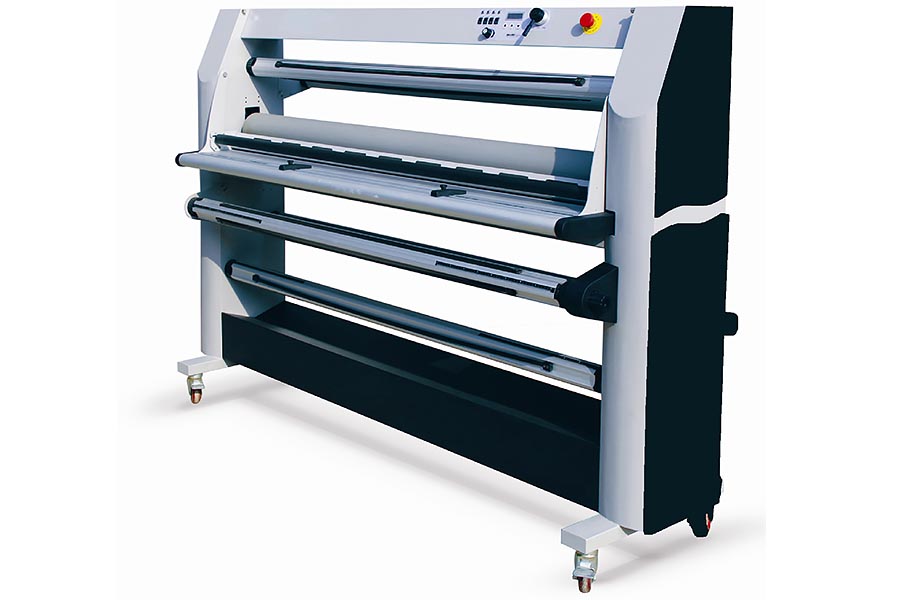

Double-side Full-auto Hot Laminator

Performance
Large-diameter high quality Top-heated silicon roller
Adjustable settings for increase capacity and versatility
Double sided Hot&cold laminator
Unique anti-tilt and anti-fold system ensures clear output

Easy to use
Automatic pressure and nip gap adjustable
Simple roll tension regulation system
Light weight drop-in supply shafts with auto-grip-for easy loading
Roll-to-roll and piece-to-piece operation capacity
Foot pedal switch for pieces accurate application

Safety
Foot switch for hands free operation
Laser safety eyes and 2 emergency stops
CE, ROHS, RCM

Inquiry Please fill in your procurement needs and contact information

Parameter	SC-1700F2
Max laminator width	1620mm/64"
Max laminator thickness	30mm/1.2"
Max speed	8m/min
Max temp	150℃/302F
Up and down	Air cylinder
heating	infrared
Warm up time	15-20min
Power consumption	0.9-1.8kw/h
Power input	4300w
Volt	110V/220V
N.w	260kg
